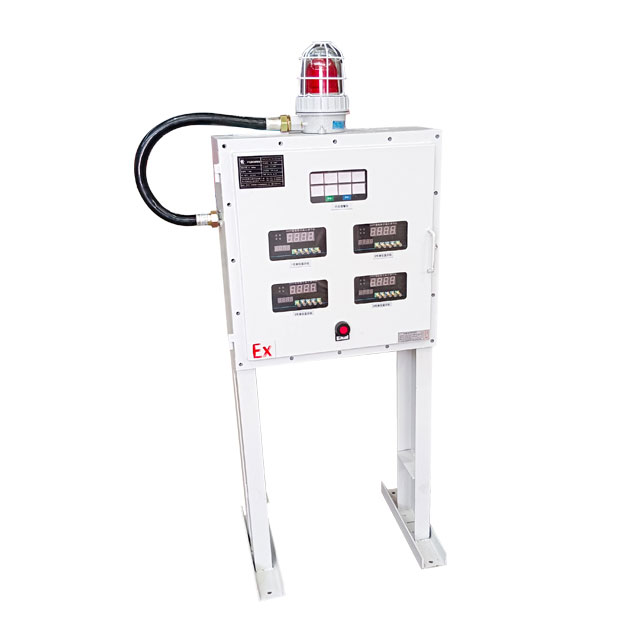

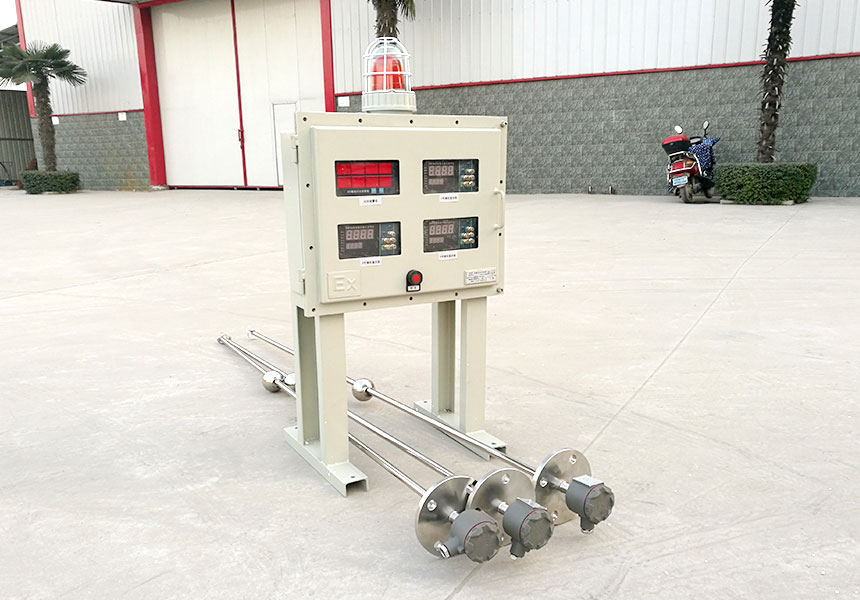

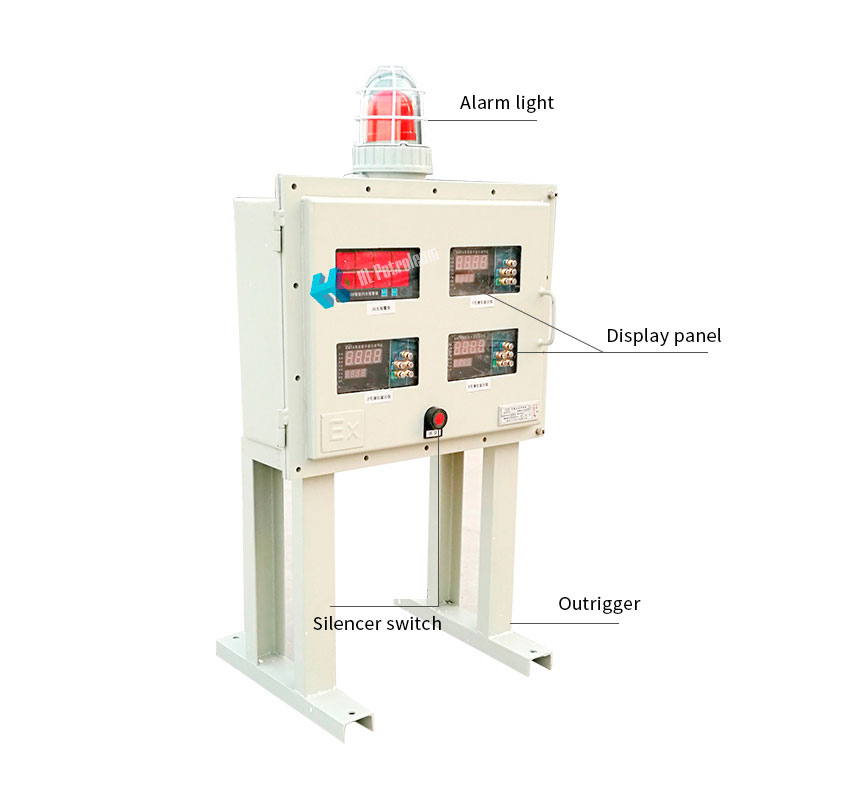

Drilling Mud Level Alarm
Product Overview:
Using special integrated chip, work stable and reliable.
A special probe is not frozen, no electrochemical corrosion.
Electrode position is adjustable.
Audible and visual alarm at the scene.
Remote alarm, alarm radius of 200 mm.
Control circuit explosion-proof standards (ExdIIBT4)
Loading and unloading of simple, convenient in operation and maintenance.
Drilling Mud Level Alarm Details
This drilling mud level alarm is used for liquid level alarm and control under bad working condition. For mud liquid level monitoring in drilling engineering, underground abnormal situation in time, in order to handle in time. The drilling mud level alarm is suitable for use in drilling mud, sewage treatment, chemical plant residual liquid level monitoring and alarming, etc.
Drilling Mud Level Alarm Parameters
|
Power supply |
220VAC、50Hz |
|
Power consumption |
Non-alarm state：＜3VA |
| Alarm status: <30VA | |
|
Ambient temperature |
-30℃~80℃ |
|
Ambient humidity |
5~100% |
|
Protection level |
IP54 |
Drilling Mud Level Alarm Working principle
This drilling mud level alarm is manufactured on the principle of probe switch. When the liquid level rises to the upper limit probe position or drops below the lower limit probe position, the instrument will give an on-site sound and light alarm and send out a modulated radio frequency signal. The alarm will receive an alarm signal. Alarm display after adjustment.
