The main technical parameters of the HQJ250-100×6 mud cleaner
Time: 2023-07-21 Source: Author: hlsolidscontrol

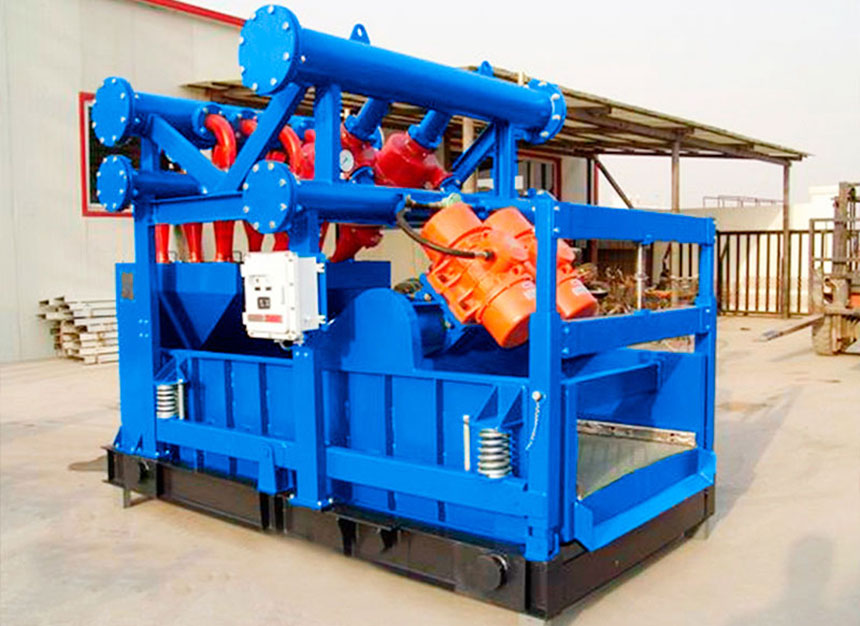

HQJ series mud cleaner is one of the main purification equipment in the drilling solid control system, usually used as the second and third level solid control equipment for drilling mud. Its structure includes sand removal cyclone group, desilter cyclone group, mud collection tank and mud shaker and other components. Through these components, the mud cleaner can effectively separate and purify the solid phase particles in the drilling fluid, ensure the stability and performance of the drilling fluid, and improve drilling efficiency.
The following are the main technical parameters of the HQJ250-100×6 mud cleaner:
1. Model: HQJ250-100×6
2. Capacity: 80 m3/h, that is, the maximum flow that the equipment can handle is 80 cubic meters per hour.
3. Motor power: 2×1.3 kW, the mud cleaner uses 2 motors, each with a power of 1.3 kW.
4. Vibrating sieve amplitude: ≥5mm, the amplitude of the vibrating sieve is not less than 5mm, which is used to effectively separate solid phase particles.
5. Vibrating sieve screen: 2×1050×700 mm hook edge screen, the size of the vibrating screen is 2, each size is 1050 mm × 700 mm, and the hook edge screen is used.
6. Desand cyclone diameter: 250mm (10"), the diameter of the desand cyclone is 250 mm (10 inches).
7. Number of desanding cyclones: 1, which means that there is 1 desanding cyclone in the mud cleaner.
8. Separation particle size of desander: 40-100 μm, that is, the equipment can effectively separate solid phase particles with a diameter between 40 μm and 100 μm.
9. Desilter cyclone diameter: 100mm (4”), the diameter of the desilter cyclone is 100mm (4 inches).
10. Number of desilter cyclones: 6, which means that there are 6 desilter cyclones in the mud cleaner.
11. Separation particle size of the desilter: 15-44μm, that is, the equipment can effectively separate solid phase particles with a diameter between 15μm and 44μm.
12. Supporting sand pump: SB4×3-15kw, the cleaner is equipped with SB4×3-15kw sand pump.
13. Weight: 1800kg, the weight of the mud cleaner is 1800kg.
14. Dimensions: 2565×1920×2670 mm, the overall dimensions of the equipment are 2565 mm×1920 mm×2670 mm (length×width×height).
We can customize mud cleaners with different handling capacity according to the requirements of users. The number of desilters is available in three specifications: 12, 16 and 20, to meet the needs of different users. If you need more detailed information, please feel free to consult us.
