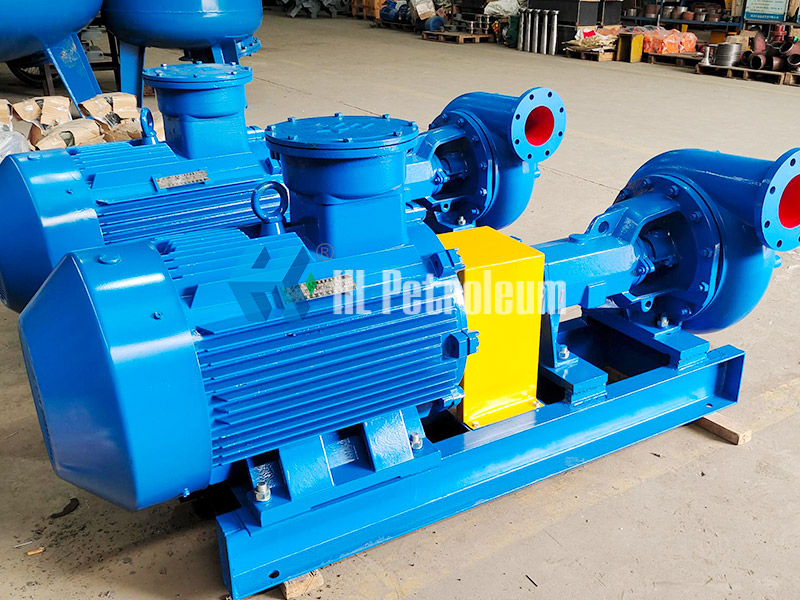

Centrifugal sand pump-- Main feed pump in solids control system

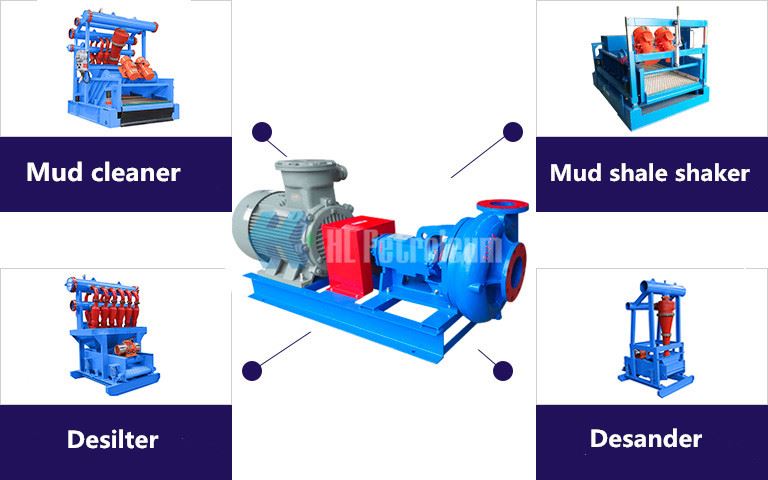

The centrifugal sand pump is mainly a feed pump in the solids control system, providing power to the desander, desilter and mud funnel.

The treatment equipment of the mud non-falling system mainly includes vibrating screen, cyclone desander, drilling fluid desilter, mud mixer, vacuum degasser, centrifuge and other products. Remove harmful substances from mud. The slurry non-falling system treatment equipment can treat the contaminated mud along with the well, effectively ensuring the safe production of oil drilling.

Centrifugal turbine sand pumps are generally mainly used in mining, coal, metallurgy, chemical industry, environmental protection and other industries, and are mostly used in environmental protection, sand mining, river dredging and other industries. In addition, there are many types of sand pumps. The oil field sb sand pump and the mining PS sand pump are mentioned here. They are mainly used to transport suspensions with a particle size larger than 48 meshes containing sand and slag. Most of the impellers are open. Pump liners are generally divided into two categories, wear-resistant metal and wear-resistant rubber, and inject high-pressure water into the sliding part of the pump shaft to prevent mud and sand from entering the sliding part.

The centrifugal mud pumps are all mechanically sealed, the wear-resistant parts are precision cast with wear-resistant alloy ductile iron, and the base of the whole machine is cast as a whole, with long service life and reliable performance.

Two types of centrifugal pumps, SB8×6×14 and SB8×6×11, are mainly used to provide certain displacement and pressure for desander, desilter, mixing funnel and mud pump.

Two types of centrifugal pumps, SB6×5×14 and SB6×5×11, are mainly used for truck-mounted drilling rigs.

The SB4×3×13 centrifugal pump is mainly used with the metering tank, also known as the metering pump.

SB3×2×13 centrifugal pump is mainly used with water tank or water cooling system, also known as clean water pump.
