What are the working principles and characteristics of HL mud level alarms

The mud level alarm is used for liquid level alarm and control under severe working conditions. In drilling engineering, it is necessary to monitor the mud level, and find out the abnormal situation in the well in time, so as to deal with it in time. This mud level alarm is suitable for monitoring and alarming the liquid level of drilling mud, sewage treatment plant, residual liquid in chemical production plants, etc.

  ​

The drilling mud liquid level alarm device is installed on the mud pool. When the mud level in the mud pool rises, the buoyancy of the liquid surface pushes the floating ball, and the floating ball connecting rod moves up and down accordingly, and the scale is displayed at the same time. The magnet on the upper end of the floating ball connecting rod is close to the When the normally open magnetic switch on the scale is approaching, the magnetic switch is closed under the action of the magnetic force, connecting the circuit between the alarm and the battery, and an audible and visual alarm is issued. When the required upper limit is reached, the upper limit alarm normally open magnetic force is turned on. When the required lower limit is reached, the normally open magnetic switch of the lower limit alarm is turned on to realize the lower limit alarm. The utility model is used for real-time measurement of the liquid level of the drilling mud pool at the drilling operation site, and provides the abnormality of the drilling mud level. The purpose of real-time alarm. The device is simple in structure, strong in practicability, high in precision, sensitive in alarm, and intuitive in observation and display.

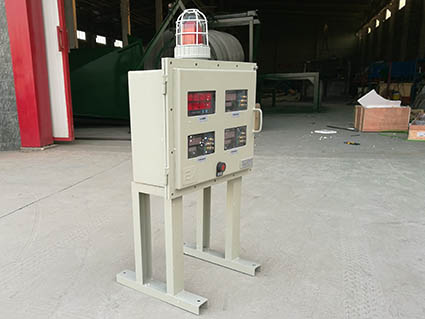

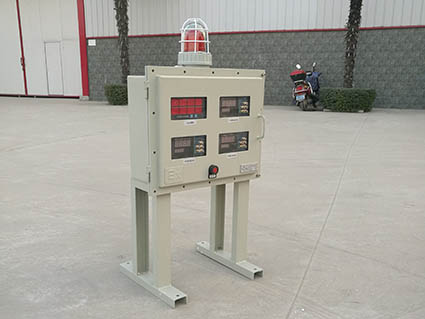

The mud level alarms produced by Xi'an HL Petroleum include sound and light mud level alarms and pneumatic mud level alarms, which can also be customized according to customer needs. Welcome to send inquiry to us: sales@hlsolidscontrol.com if you are interested in.
