SZB Vacuum Pumps

Product details

SZB vacuum pump is a pump used to suck or compress air and other non-corrosive, water-insoluble, solid particles-free gas, so as to form a vacuum and pressure in a closed container, and a small amount of liquid is allowed to be mixed in the suction gas.

The pump has a wide range of applications, can pump out various gases containing steam, flammable, explosive, a small amount of dust, and a small amount of liquid; it is mainly used as a working medium with low maintenance costs; can work in a relatively harsh environment .

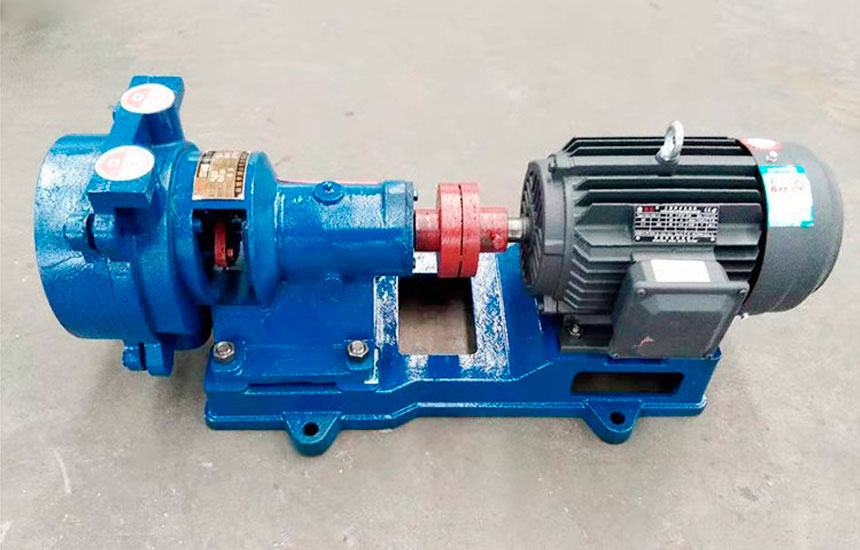

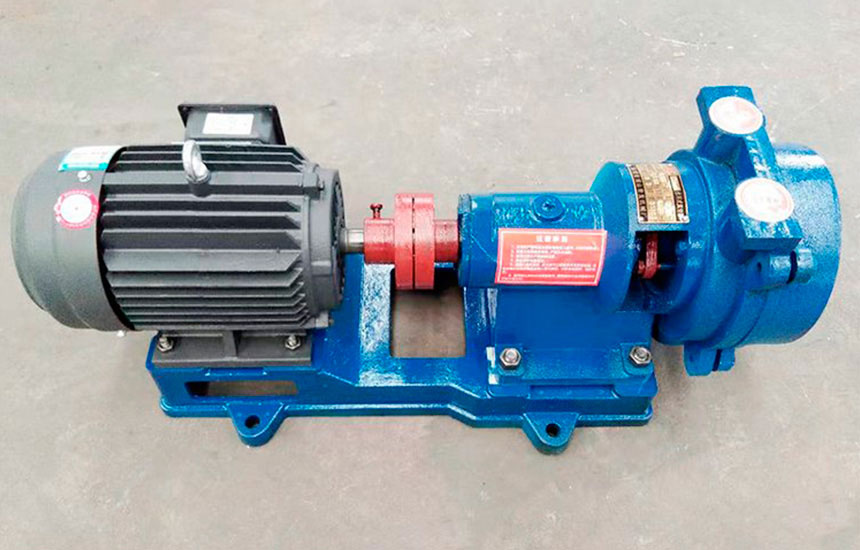

SZB Water Ring Vacuum Pumps

Xi'an HL SZB vacuum pumps and compressors are widely used in machinery, petrochemical, pharmaceutical, food, sugar industry and electronics.

SZB Water Ring Vacuum Pump Parameters

type	suction amount (m3/min)		utmost vacuum (MPa)	motor power (kw)	pump rotary speed (r/min)	caliber of suction port(mm)	caliber of drain port(mm)	supplied water amount (L/min)	weight (including motor) (kg)
type	maximum air amount	suction pressure-0.0 7MPa	utmost vacuum (MPa)	motor power (kw)	pump rotary speed (r/min)	caliber of suction port(mm)	caliber of drain port(mm)	supplied water amount (L/min)	weight (including motor) (kg)
SZB-4	0.33	0.24(4L/S)	-0.086	1.5	1400	G1″	G1″	8	95
SZB-8	0.64	0.48(8L/S)	-0.086	2.2	1420	G1″	G1″	10	105

Note:

When the vacuum percentage range is 40% to 90%, or the pressure range is 0.05Mpa to 0.15Mpa, the gas suction and drainage will be subject to the amount of the supplied water amount and the crevice between the impeller and the side cover. If the flux is rather small, and the adjustment is not accurate enough, the gas suction and drainage tends to be smaller.
The value in the table is obtained under the following condition: ① water temperature is 15℃ ② air temperature is 20℃ ③ relative humidity of the gas is 70％ ④ air pressure is 0.1013Mpa
The performance difference in the table will not exceed 5%

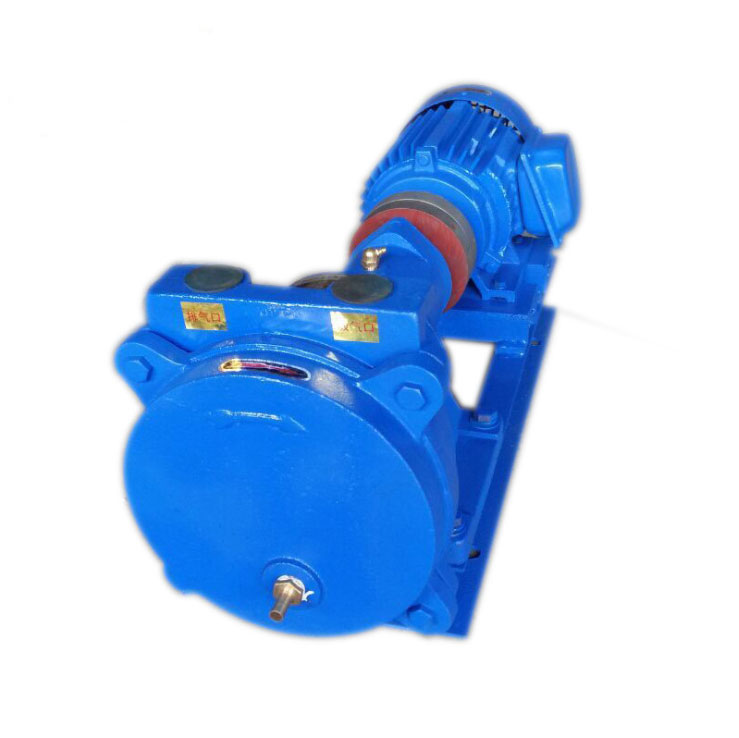

SZB Water Ring Vacuum Pump

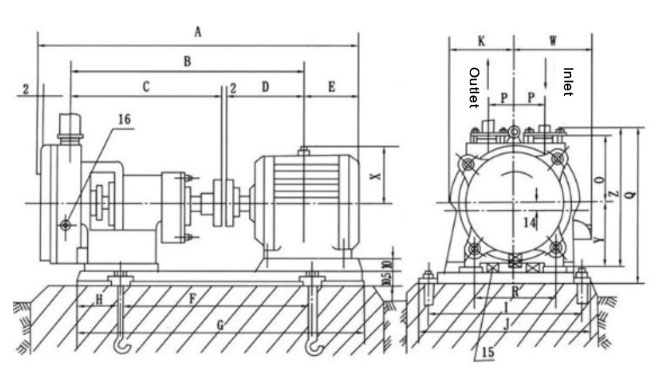

SZB series water ring vacuum pump installation dimension drawing
SZB Water Ring Vacuum Pump Installation Size

Model	A	B	C	D	E	F	G	H	I	J	K	Y	Z	W	R	Q	P	O	X	motor
SZB-4	755	504.5	313	175.5	122	390	640	125	310	360	120	135	274	155	187	359	55	121	145	Y90L-4-1.5KW
SZB-8	780	523	313	208	139	393	660	133	345	385	120	135	274	155	187	369	55	121	145	Y100L1-4-2.2KW

1. When the vacuum pump is used for water diversion of the water pump, the distance between its installation position and the water pump should be wider to facilitate the maintenance of the water pump and vacuum pump.

2. There must be no air leakage in the suction pipe of the vacuum pump. The size of the foundation is implemented according to the installation drawing or measured

3. The shaft of the vacuum pump and the shaft of the motor must be kept horizontal, and no concentricity is allowed. The foundation must be solid and reliable. After pouring the mud and water, let it dry for 48 hours, recheck whether there is any change in the installation, and then tighten the anchor bolts, and there must be no loosening.

4. Please refer to Figure 5 if the steam separator needs to be installed.
