Product details

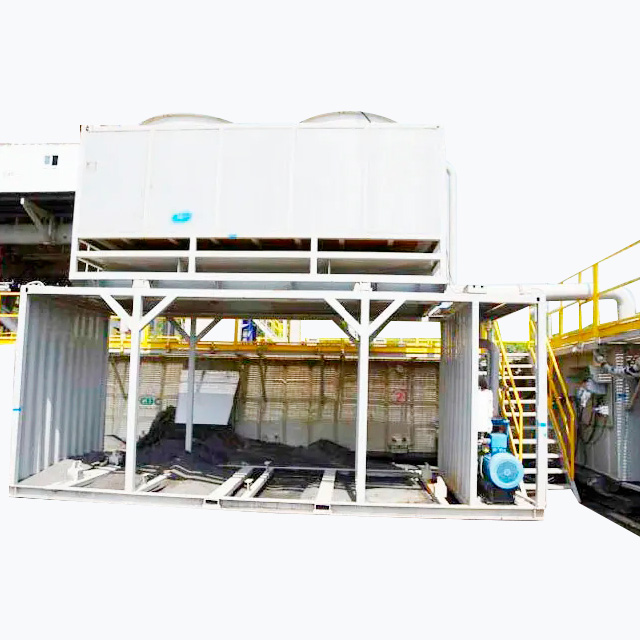

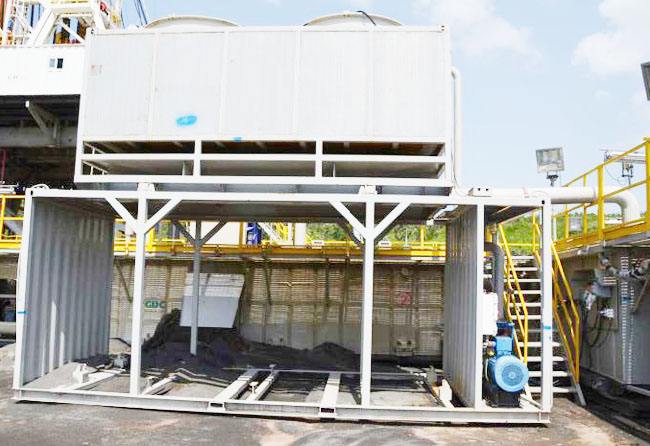

The drilling fluid cooling system is a special equipment used to cool the high temperature drilling fluid in the well during the drilling process.
Drilling fluid cooling system technical parameters
The inlet water temperature of the cooling tank is 80-90℃, the outlet water temperature is 55-60℃, and the temperature difference is 20-25℃;
Total flow: 180m3/h
Motor power: 4.0Kw x 2
Fan diameter: 1800mm
Air volume: 68000m3/h
Dimensions: 6200×2830×3200 （mm）

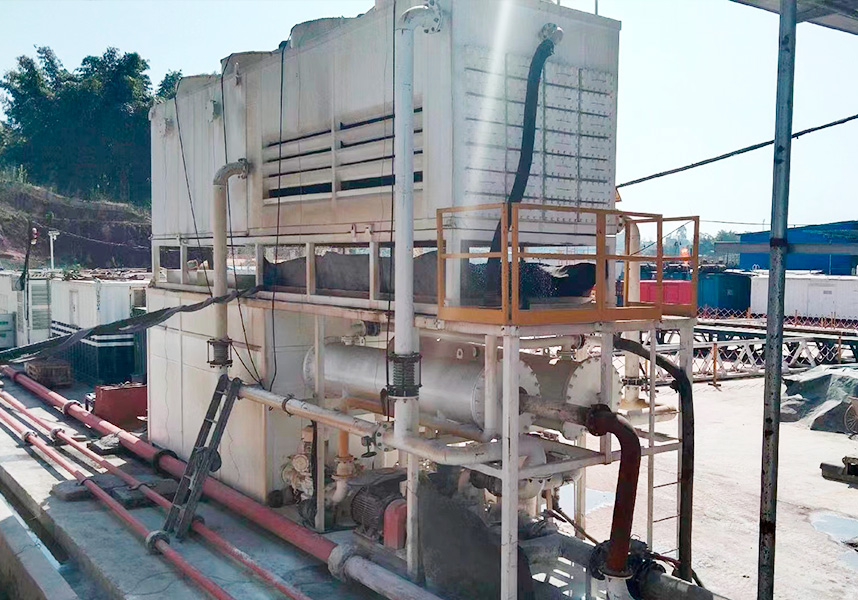

The principle of the drilling fluid cooling system
when working, the sand pump extracts the mud from the mud tank and discharges it to the spray system of the cooling tank. Relying on the electric fan on the top, the cold air outside the tank is forcibly sucked into the tank through the lower part of the tank; the hot mud is drawn from the upper part The spray system is evenly distributed to each nozzle, and the hot mud is sprayed down onto the packing layer through the nozzles, forming a water film on the packing, and the mud and the cold air entering the tank exchange heat in the packing; the hot and humid air is discharged by the fan Outside the tank, the cooling slurry enters the water collection tank and is discharged.
