Drilling Mud Mixing System
Product details
The main function of the drilling mud mixing system is to mix the mud, which uses the principle of combining jet mixing and impeller mixing.
The drilling mud mixing system has the characteristics of sufficient mixing and fast speed, and it only takes 15 minutes to complete the mud preparation each time. The system is widely used in geological drilling, oil drilling and trenchless pipeline construction and other fields.

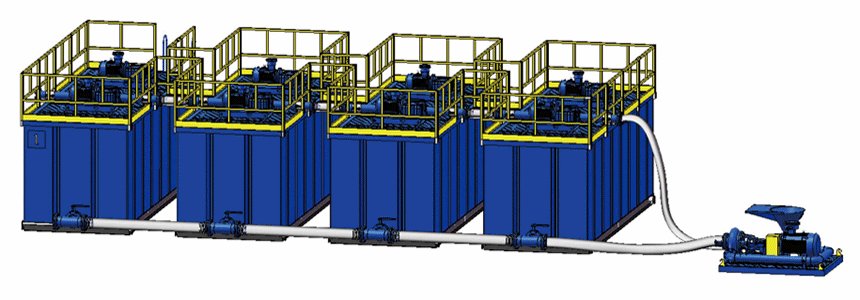

Our company's drilling mud mixing system consists of multiple mud tanks with agitators, which are connected by rubber hoses and can be used independently through valves. One of the tanks is connected to a jet mixing device, which enables it to suck mud from any tank and discharge the mixed mud into any tank. The configured mud is finally input into the drilling rig through the mud pump for recycling. This design allows the mud to flow and mix flexibly between different tanks, ensuring that the quality and performance of the mud is maintained and meets the needs of the rig during the operation.
Drilling Mud Mixing System Features1. The size and structure of the mud tanks are the same, and the interchangeability is strong: the mud tanks in the drilling mud mixing system usually have the same size and structure, which makes them have good interchangeability. This design advantage makes it very convenient to operate when the tank needs to be replaced or adjusted, which improves the flexibility and maintenance efficiency of the system.
2. Fast slurry mixing speed and good mixing effect: the agitator of this system adopts the principle of combining jet agitation and impeller agitation, so that the agitation is sufficient and the efficiency is high. This leads to a fast mixing speed, which can be completed in only 15 minutes for each preparation of mud. At the same time, the mixing effect is also very good, ensuring that the solid particles in the mud are evenly distributed, thereby improving the efficiency and quality of drilling.
3. The tank body adopts a corrugated structure, which is high in strength and durable: the tank body of the drilling mud mixing system is usually designed with a corrugated structure, which makes the tank body have high strength and stability. In complex operating environments such as drilling, this design can ensure the stability of the tank, increase the durability of the system, and reduce the risk of equipment damage caused by harsh conditions.
4. Explosion-proof control box and explosion-proof lighting, safe and reliable: Drilling operations usually face certain safety risks, so the design of the drilling mud mixing system also pays attention to safety. The system is equipped with explosion-proof control boxes and explosion-proof lighting equipment to ensure normal operation in potentially dangerous environments. These safety measures ensure the personal safety of construction personnel and make the entire drilling process more reliable.
Our company has independently developed and produced a mud mixing system specially used for drilling and trenchless construction. Since the product was put into the market, it has been unanimously praised by many construction units, highlighting its unique advantages: the system has the characteristics of small input power and large output torque, has a large volume and can evenly mix mud, excellent effect, beautiful appearance and easy transportation. Therefore, it is an ideal construction supporting equipment.
