Mongoose Drilling Fluid Shale Shaker

Product details

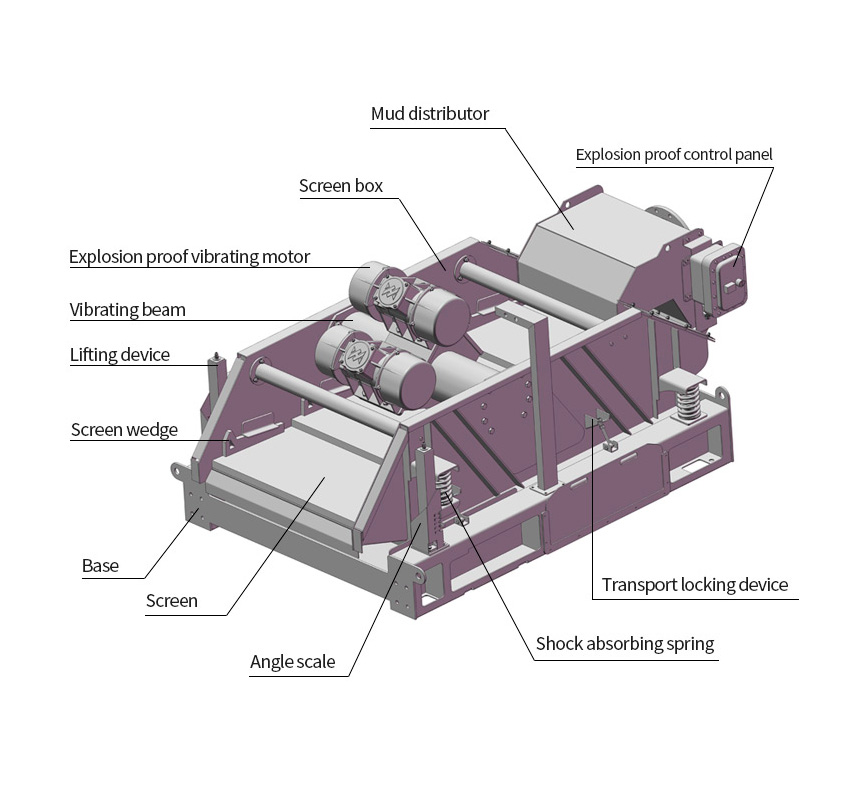

The mongoose drilling fluid shale shaker is the first-level equipment for solid-liquid separation of drilling fluid, and is suitable for the drilling fluid solid control system in oil and gas drilling and production. The shaker uses two vibrating motors of equal mass and diameter. According to the self-synchronization principle, the screen box moves linearly in a certain direction to screen out and discharge the cuttings particles in the drilling fluid. >>Send an Enquiry sales@hlsolidscontrol.com<<

Technical parameters of mongoose drilling fluid shale shaker >>Send an Enquiry sales@hlsolidscontrol.com<<

Model	HZS703	HZS803	HZS604	HZS605
Vibration Mode	Linear Motion	Linear Motion	Linear Motion	Linear Motion
Capacity	30L/S	35L/S	40L/S	45L/S
Screen Area	2.2㎡	2.7㎡	2.7㎡	3.4㎡
Screen Qty & Size	3×1050×700mm	3×1080×830mm	4×1165×585mm	5×1165×585mm
Motor Power	2×1.5kW	2×1.8kW	2×2.2kW	2×2.5kW
Deck Angle Range	-1°～3°	-1°～3°	-1°～3°	-1°～3°
Dimension: L×W×H	2850×1590×1550	3150×1800×1630	2650×1700×1750	2850×1750×1650mm
Weight	1680kg	1800kg	1950kg	2350kg

A very important parameter of the mud shale shaker is its processing capacity. In addition to the selection of its own motion parameters, it is also affected by factors such as drilling fluid type, density, viscosity, size and amount of solid particles, and mesh size. Therefore, it should be considered and reasonably selected in actual use.
