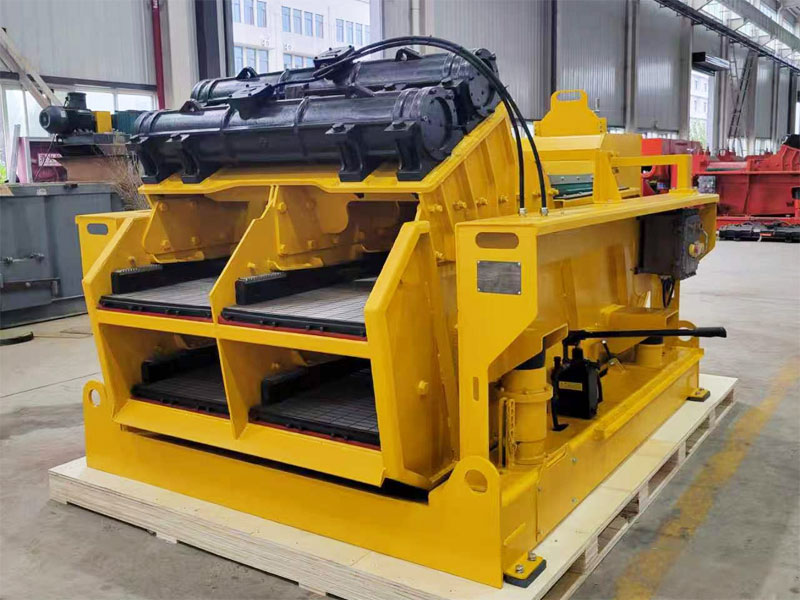

HDZS6216 Double Deck Shale Shaker Completed and Ready for Shipment to Turkmenistan Oilfield Project

Recently, one set of HDZS6216 Double Deck Shale Shaker manufactured by our company has successfully completed production, inspection, and factory acceptance. The equipment has now been prepared for shipment to an oilfield project in Turkmenistan, where it will be used as part of the drilling fluid solids control system.

As a key piece of solids control equipment in oil and gas drilling operations, the HDZS6216 shale shaker is designed to efficiently remove drilled cuttings and other coarse solid particles from drilling mud, helping maintain drilling fluid performance and reduce the solids load on downstream equipment.

HDZS6216 Double Deck Shale Shaker Technical Specifications

The main technical parameters of this unit include:

Model: HDZS6216 Double Deck Shale Shaker

Vibration Motion: Elliptical

Screen Type: Frame screen

Screen Size: 16-650 × 600 mm

Screen Mesh: 40–210 mesh

Screen Area: 6.2 m²

Motor Power: 2 × 3.0 kW

Exciter Speed: 1500 r/min

Vibration Frequency: 25 Hz

Vibration Amplitude: ≥5.5 mm

Vibration Intensity: ≥6 g

Screen Box Angle Adjustment: -1° to +4°

Mud Processing Capacity: ≥40 L/s

Power Supply: AC 380 V, 50 Hz

Overall Dimensions: 3165 × 2110 × 1775 mm (L × W × H)

Total Weight: 3950 kg

Designed for Reliable Drilling Fluid Solids Control

The HDZS6216 is mainly composed of a base assembly, screen box assembly, screen box angle adjustment assembly, anti-splash assembly, mud box assembly, and electrical control system.

The screen box is supported by four rubber springs mounted on the left and right beams of the screen box angle adjustment assembly. This configuration forms a stable spring-mass vibration system, providing reliable vibration performance during operation.

The elliptical vibration motion helps improve the conveyance and screening of drilled cuttings while maintaining effective separation performance. The adjustable screen box angle also allows operators to optimize the shaker according to different drilling fluid and formation conditions.

Suitable for Harsh Oilfield Environments

Considering the demanding conditions of oilfield operations, this HDZS6216 shale shaker is configured with an ExdⅡBT4 explosion-proof rating and IP55 electrical protection rating.

The equipment is designed for an ambient temperature range of -40°C to +50°C and relative humidity of up to 95%, making it suitable for demanding outdoor drilling environments.

The explosion-proof electrical configuration provides an additional level of safety for drilling sites where flammable gases may be present.

Strict Quality Inspection Before Shipment

Before shipment, the equipment underwent comprehensive manufacturing inspection and factory testing. Key components, structural assemblies, electrical systems, vibration performance, and overall operation were carefully checked to ensure that the shaker meets the required technical specifications.

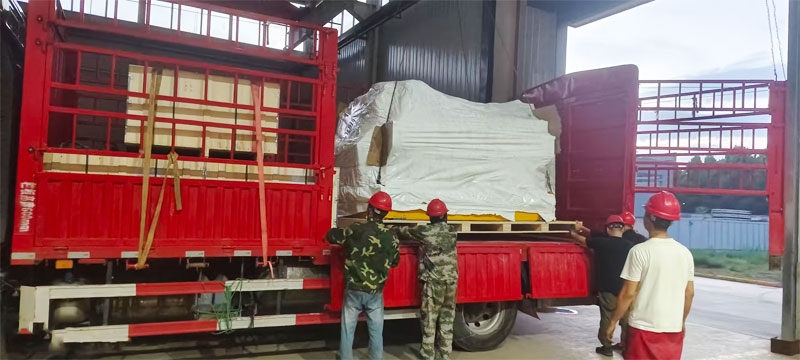

After completing the final inspection, the equipment was properly prepared for transportation to the customer's Turkmenistan oilfield project.

Supporting Global Oilfield Solids Control Projects

Our company specializes in the design and manufacture of oilfield solids control equipment and drilling fluid processing systems. Our product range includes shale shakers, mud cleaners, desanders, desilters, vacuum degassers, mud agitators, sand pumps, jet mud mixers, mud mixing hoppers, mud tanks, and complete solids control systems.

The successful completion of this HDZS6216 Double Deck Shale Shaker for the Turkmenistan project demonstrates our continued ability to provide reliable drilling solids control equipment for international oilfield applications.

We will continue to focus on equipment quality, technical innovation, and professional project support to provide efficient and dependable solids control solutions for customers in Turkmenistan and other global oil and gas markets.
