Jet Mud Mixer Delivery
Time: 2024-08-12 Source: Author: HL Solidscontrol
Today, we have 1 unit 80 jet mud mixer delivered. This device is mainly composed of a sand pump, a jet mixing funnel and a manifold valve, and is equipped with a magnetic starter. The motor and electrical are all explosion-proof, with explosion-proof grade BT4 and protection grade IP55. It has stable performance, safe and reliable!
The HHQ80 type jet mud mixer has a slurry preparation volume of 80 cubic meters per hour, which can meet the weighting and preparation of drilling fluids below 2000 meters. It is currently one of the smallest of our HHQ series mixing devices. The largest one can achieve a slurry preparation volume of 300 cubic meters per hour.
Technical parameters of HHQ80 type jet mud mixer :
| Model | HHQ80 |
| Matching pump | SB4*3(15KW) |
| Capacity | 80m3/h |
| Inlet diameter | 100mm |
| Outlet diameter | 80mm |
| Nozzle diameter | 20mm |
| Dimension(mm) | 1800*1600*1000 |
| Weight(kg) | 700 |

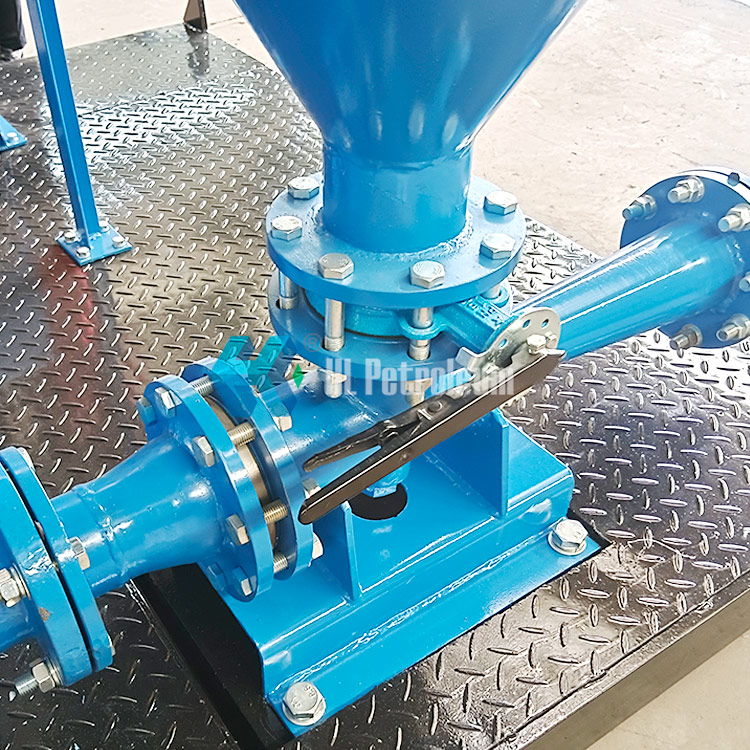

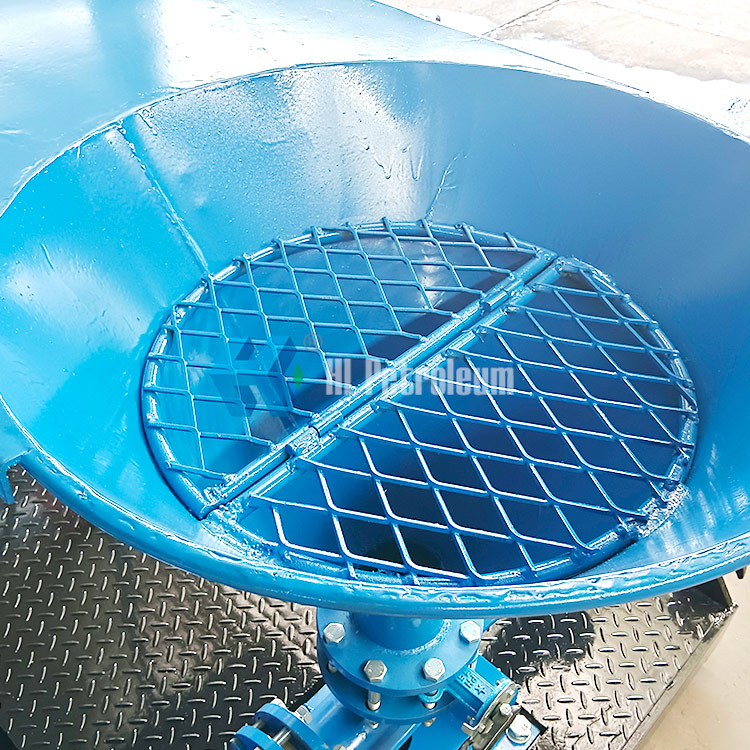

Details of HHQ80 type jet mud mixer :
