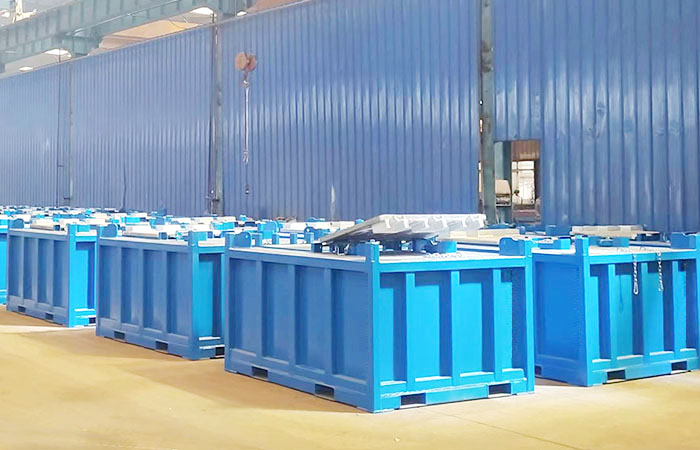

Cuttings Boxes

Cuttings boxes are mainly used for cuttings recovery, storage box transfer and other work in conjunction with cuttings recovery equipment on offshore drilling platforms. Cuttings, cuttings and other waste generated during drilling operations are collected and stored in cuttings collection boxes, and transported to centralized processing sites using cranes or forklifts for centralized processing. Drilling waste is transported to processing or discharge sites. The operation is safe and convenient, with low cost and high efficiency to reduce the risk of leakage and can be stacked. HL Petroleum can customize and produce cuttings boxes with a variety of specifications and an effective capacity of 2-4m³. Cuttings boxes for offshore drilling also have CCS certification, weld flaw detection reports, etc.

Cuttings box advantages

1. Cuttings boxes are complete and customizable: Cuttings boxes with a variety of specifications and an effective capacity of 2-4m³ are provided; they can be customized, with a small size and less space occupation, saving drilling costs.

2. The cuttings box body is fully configured: the top cover of the cuttings box is sealed with high-quality rubber to effectively prevent the spillage of cuttings; and a liquid discharge hole is provided to thoroughly discharge the objects in the box for easy flushing and cleaning.

3. Excellent and reasonable design of the cuttings box: The cuttings box is designed with a large inlet and outlet and an inclination angle, which makes it more convenient and safe to collect and dump cuttings; the stackable structure design allows the capacity to be increased without increasing the floor space; the cuttings box is designed with a hoist to ensure the safe and fast lifting of the equipment. Reasonable height design of the cuttings box eliminates potential dangerous working heights.

3. Advanced welding technology of the cuttings box: The surface of the cuttings box weld is uniform and dense, smooth to the parent material, without cracks and excessive excess height, and without defects such as weld nodules, arc pits and undercuts.

5. High-quality material selection and spraying of the cuttings box: Q235A steel is first used for anti-corrosion sandblasting, epoxy zinc-rich primer anti-corrosion paint twice, micaceous iron intermediate paint twice, chlorinated rubber topcoat twice, and the dry paint film thickness is greater than or equal to 100μM.

6. The cuttings box has a variety of complete certifications: the cuttings box for offshore drilling has CCS certification, weld flaw detection report, etc.
