Nested water tank manufacturer

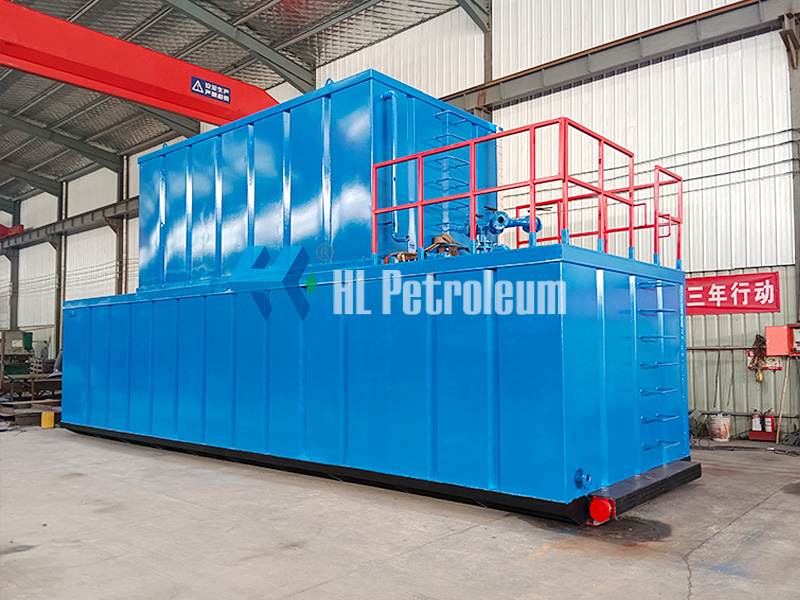

Today I will introduce an oilfield water storage tank, which is the HSG80 nested water tank behind me. The HSG set water tank is mainly used for oil drilling production and domestic water supply, and is an indispensable water supply equipment.

This nested water tank consists of an upper and a lower tank. The volume of the upper tank is 30 cubic meters, and the volume of the lower tank is 50 cubic meters with a pump chamber. During normal operation, the upper tank is located above the lower tank and firmly fixed on it. The lower tank is provided with 6 supporting columns and a limit point. During transportation, the upper tank is placed in the lower, which meets the consignment requirements.

The nested water tank has the functions of water supply to the upper tank and water inlet and outlet from the lower tank, and is equipped with a spare port to provide water for water equipment.

The upper and lower tanks are made of durable corrugated board structure with a thickness of 6mm, and the base adopts a skid-mounted structure, which can meet the short-distance dragging on site.

The nested water tank is equipped with a closed pump chamber, including two explosion-proof centrifugal pumps, and lighting, magnetic flap level gauge, explosion-proof control box and pipeline valves. All electric motors are explosion-proof, the explosion-proof grade is ExdⅡBT4, and the protection grade is IP55.

This is all for today, welcome to send inquiry to us: sales@hlsolidscontrol.com if you want to know more about the tanks.
