Mud Pump Parts Classification and List
Time: 2024-05-31 Source: Solids Control Equipment Author: Mrek

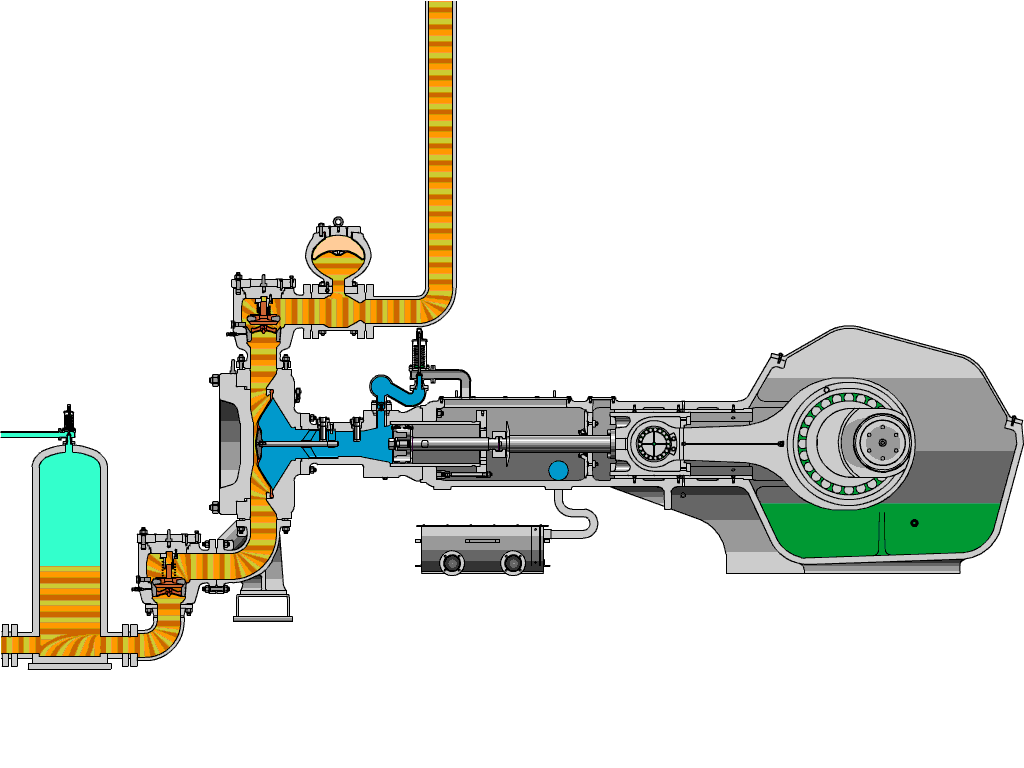

The mud pump is a horizontal three-cylinder single-acting piston pump, which is mainly composed of two parts: the power end and the hydraulic end. The power end includes: frame, pinion shaft, crankshaft, crosshead, intermediate tie rod, etc.; the hydraulic end includes: cylinder, valve assembly cylinder sleeve, piston, etc. It also includes: air bag, safety shear valve, centrifugal spray pump, etc.
Mud Pump Parts Classification and List
Mud Pump Parts Classification and List
| Serial number | quantity | Name |
| 1 | 1 | Rack assembly |
| 2 | 1 | Crankshaft assembly |
| 3 | 1 | Pinion shaft assembly |
| 4 | 3 | Crosshead assembly |
| 5 | 1 | Fluid end assembly |
| 6 | 1 | Power end lubrication assembly |
| 7 | 1 | Base |
| 8 | 1 | Spray pump assembly |
| 9 | 1 | Sealing gasket |
| 10 | 1 | air filter |
| 11 | 1 | Cover assembly |
| 12 | 2 | Nameplate |
| 13 | 1 | Cover |
| 14 | 1 | Gasket |
| 15 | 2 | indicator |
| 16 | 2 | Oil level gauge assembly |
| 17 | 2 | Drain cover |
| 18 | 2 | Sealing gasket |
| 19 | 2 | Cross head hole cover |
| 20 | 2 | Gasket |
| 21 | 1 | Rubber Strip |
| 22 | 1 | Top view hole cover |
| 23 | 1 | Oil Drain Manifold |
| 24 | 1 | Top view hole cover seal |
| 25 | 1 | Air Tube Clutch |
| 26 | 1 | Air Bag Capsule |
| 27 | 1 | Liner Cage |
| 28 | 3 | Cylinder Liner |
| 29 | 3 | Piston Assembly |
| 30 | 1 | Rubber sheet |
| 31 | 1 | Valve Assembly |
