What is a desander and desilter integrated machine?
Time: 2023-08-11 Source: HL Petroleum Author: hlsolidscontrol
A desander and desilter integrated machine is a piece of equipment commonly used in the oil and gas industry, as well as in other industries that involve the separation of solids from liquids. This equipment is typically used in drilling operations to remove solid particles, such as sand and silt, from drilling fluids before they are reused or disposed of.
Desanders and desilters are both types of hydrocyclones, which are devices designed to separate solid particles from liquids based on their differences in density. Here's a brief overview of each component:
A desander is a hydrocyclone that is specifically designed to remove larger solid particles, usually those with a diameter of 44 to 74 microns, from drilling fluids. It helps improve the efficiency and effectiveness of drilling operations by preventing these larger particles from damaging equipment and interfering with the drilling process.
A desilter is another type of hydrocyclone that is used to remove smaller solid particles, typically ranging from 15 to 44 microns in diameter, from drilling fluids. It complements the desander by providing a finer level of separation, further improving the quality of the drilling fluid.

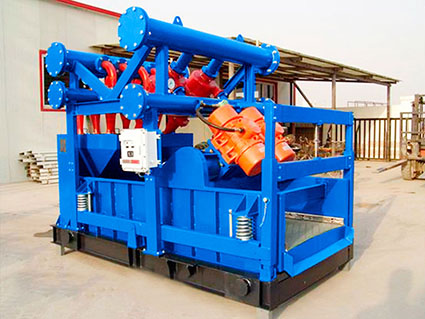

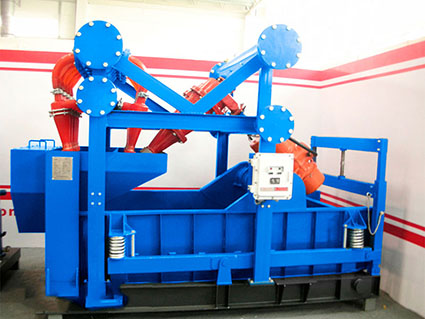

An integrated machine combines both desander and desilter hydrocyclones into a single unit. This setup allows for a more compact and streamlined system, often with a common feed manifold and discharge outlet. The integrated machine can be more space-efficient and easier to maintain compared to separate desander and desilter units.
The overall process involves feeding the contaminated drilling fluid into the hydrocyclones. As the fluid enters the hydrocyclone, it is subjected to centrifugal forces, which cause the solid particles to be separated from the liquid. The separated solids are then discharged from the bottom of the hydrocyclone, while the cleaned fluid exits through the top.
The desander and desilter integrated machine play a crucial role in maintaining the quality of drilling fluids, which in turn helps improve drilling efficiency, reduce equipment wear and tear, and minimize environmental impact by properly managing waste materials. These machines contribute to the overall effectiveness and sustainability of drilling operations in various industries.
HL Petroleum is a solid control equipment manufacturer integrating R&D, production, sales and service. The main products include Shale Shaker, Mud Cleaner, Vacuum Degasser, Desander, Desilter, Centrifugal Pump, Decanting Centrifuge,mud agitators, poor boy degasser, Mud Gun,Mud Pumps,mud tank etc. These products are widely applied in various fields, such as oil drilling,HDD,mineral separation,CBM exploration,river sand separation.If you are interested in our equipment,please contact us.
