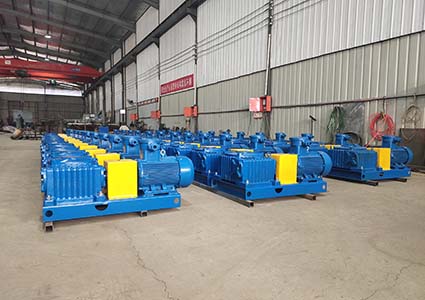

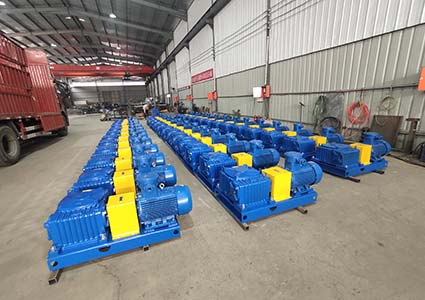

How to install the mud agitator?
Time: 2023-08-07 Source: HL Petroleum Author: hlsolidscontrol
The installation steps of mud agitator are as follows:
1. Before installation, the mud agitator should be hoisted horizontally and placed securely at the intended installation location. After confirming the level, use 4 M16 bolts to connect the agitator to the mud tank, and tighten the bolts to fix it.
2. When connecting rigid couplings, be sure to add spring washers and tighten the coupling bolts. This step is very important, otherwise it may cause the pulsator shaft to deflect, increase the wear of the worm gear/worm pair in the reducer or cause bearing damage.
3. Usually when the depth of the mud tank is equal to or greater than 2400mm, the mud agitator is equipped with an auxiliary support, also called a "centralizer". The total height of the centralizer exceeds 300mm. When installing, put the centralizer on the lower end of the pulsator shaft first, and after connecting the bolts of the driving disc and the driven plate, evenly adjust the radial clearance between the inner hole of the centralizer sleeve and the outer circle of the cantilever end of the pulsator shaft. Then, weld the bottom of the three supporting ribs firmly on the bottom of the tank. If the mud tank has an inclined bottom plate, pad correction blocks should be added between the support ribs of the centralizer and the inclined bottom plate to ensure that the inner hole of the upper sleeve of the centralizer is on the same axis line as possible with the wave wheel shaft.
4. After the installation is complete, start the mud agitator for power operation. Pay attention to check whether there are abnormal phenomena, such as abnormal noise, stagnation, excessive temperature of the reducer, etc. If an abnormality is found, stop the machine to check the cause, and restart after troubleshooting.
