What is the scope of application of HL Petroleum 3-in-1 mud cleaner for sand and mud removal

What is the scope of application of HL Petroleum 3-in-1 mud cleaner for sand and mud removal?

HL Petroleum mud cleaner is designed and produced by absorbing advanced technology at home and abroad, and has been upgraded many times in the design and production. Its excellent quality and mature technology have been praised by customers at home and abroad.

1. Purpose and scope of application of mud cleaner

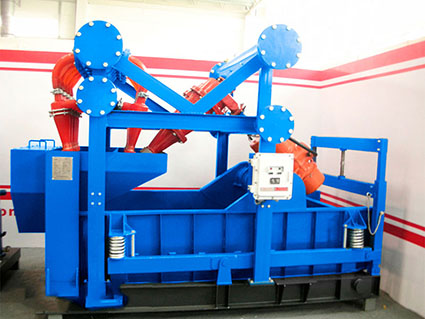

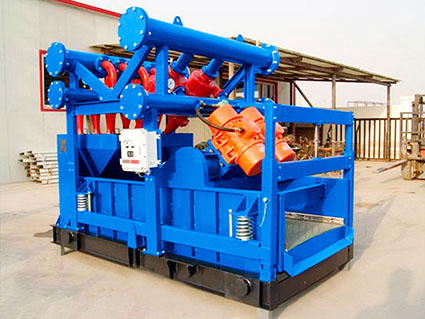

The mud cleaner is a new type of mud treatment equipment which is organically combined with a drilling fluid vibrating screen, a set of 2 10" cone desilters and a set of 12 4" cone desilters. It is mainly used for drilling fluids. After the shaker, the 20-74 μm sandy and shale solids in the circulating drilling fluid are removed while minimizing drilling fluid losses.

2. Structure and working principle of mud cleaner

The mud cleaner is mainly composed of sand removal components, mud removal components, underflow collecting bins, inlet and overflow manifolds, and cleaning drilling fluid vibrating screens.

According to the installation location and drilling process needs, HL Petroleum Drilling Fluid Cleaner can be combined with sand removal + cleaning screen, mud removal + cleaning screen combination, sand removal + mud removal + cleaning screen combination, or clean screen directly It is used in several combinations such as drilling fluid vibrating screen.

Under normal circumstances, the desander group is mainly used to remove the sandy solid phase of 44~74μm, the desilter group is used to remove the muddy solid phase of 20~44μm, and the cleaning screen is used to recover the liquid phase or barite .

HL Petroleum Desanding and Desilting Integrated Machine Cleaner is the second and third stage solid control equipment of drilling mud circulation system. HL Petroleum Drilling Fluid Cleaner has the characteristics of compact and reasonable structure, saving tank surface area, convenient installation and use, and strong processing capacity. It is mainly used to remove 20-120μm solid phase particles in drilling fluid, save drilling fluid, provide good conditions for subsequent centrifuges to further separate harmful solid phase in drilling fluid, effectively control the solid phase content of drilling fluid, and improve drilling fluid. speed, protect oil and gas layers, and effectively play the role of mud removal and sand removal especially in the deep well stage.
