What are the structural characteristics of the cyclone desander

What are the structural characteristics of the cyclone desander? Today, the editor of HL Petroleum will give you a detailed introduction to our company's cyclone desander. If you have more questions, you can communicate with our professional designers.

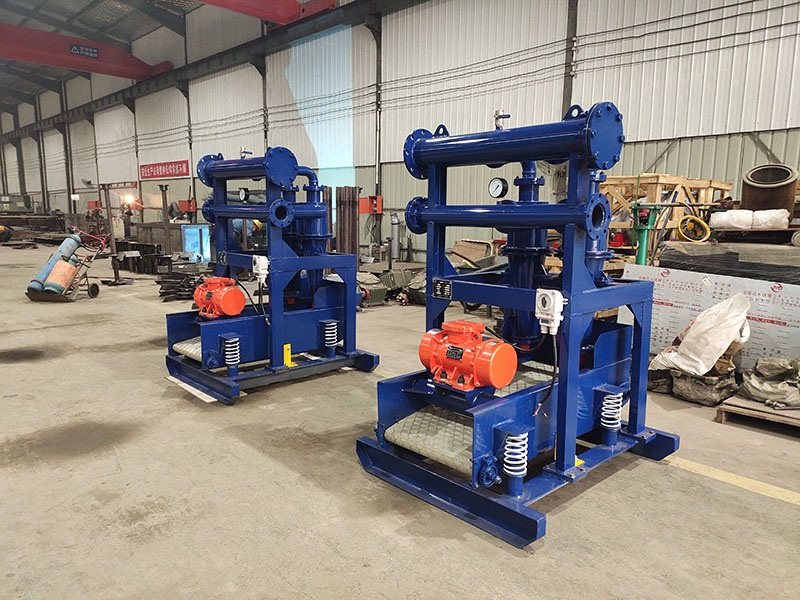

The cyclone desander is composed of a distributor, two cyclones, a vibrating screen and a motor.

The two Ф298 cyclone inlet pipes are symmetrical and equidistant, and the amount of liquid inlet and sand discharge is basically the same, and the work load is balanced. The cyclone is made of polyether polyol, and its abrasion resistance is Luowu Manganese Steel 3-5 Times, the cyclone lining has a high smoothness

The bottom flow of the cyclone is equipped with a fine-mesh vibrating screen. The screen uses a vibrating motor fixed on the screen box to directly vibrate. The structure is simple, easy to install, stable and reliable in vibration, and long in motor life. Chip removal is smooth and fast, no liquid running, and there is no pile of debris on the screen surface.

The screen surface is in the shape of an upper arch, and a longitudinally laminated hook-side screen is used. A bar shaft is installed at the front and rear of the screen box. The screen is easy to tighten and not loose. The screen surface and the screen rubber pad are not easy to move relative to each other. The net has a long service life.

When the utility model desander is performing sewage treatment, the water to be treated enters the body from the water inlet, and the impurities in the water are deposited on the stainless steel filter, thereby generating a pressure difference. The pressure difference between the inlet and outlet is monitored by the pressure difference switch, and when the pressure difference is When the set value is reached, the electronic controller feeds the hydraulic control valve, drives the motor signal, and initiates action: the motor drives the brush to rotate, cleans the filter element, the control valve opens to discharge the sewage, the cleaning ends, the control valve is closed, the motor stops rotating, and the system resumes to its initial state.

The hydrocyclone consists of a hollow cylinder in the upper part and an inverted cone communicating with the cylinder in the lower part. The two constitute the working cylinder of the hydrocyclone. In addition, the hydrocyclone also has a feed pipe, an overflow pipe, an overflow pipe and a grit port.

Hydrocyclones are mainly used for classification, separation, concentration and desliming in the mineral processing industry. When the hydrocyclone is used as a grading device, it is mainly used to form a grinding and grading system with a mill; when used as a desliming device, it can be used for desliming in a gravity separation plant; when used as a thickening and dewatering device, it can be used to remove the beneficiation tailings After being concentrated, it is sent to fill underground mining tunnels.

Xi'an HL Petroleum Equipment Co., Ltd. produces cyclone desander, desilter, mud cleaner and mud purification devices. We can customize them according to customer requirements. Welcome to send inquiry to us: sales@hlsolidscontrol.com if you want to know more about it.
