What are the functions and principles of the drilling fluid gun?

The drilling fluid gun is a special equipment for mixing the sand settling in the drilling fluid tank and the drilling fluid in the dead corner with the drilling fluid stirrer.

According to its structure, drilling fluid guns can be divided into fixed drilling fluid guns and rotary drilling fluid guns. Fixed drilling fluid guns are widely used in drilling tanks of foreign solids control systems. They are installed at two diagonal angles about 200mm from the bottom of the tank.

The nozzles are parallel to the longitudinal tank wall of the drilling fluid tank to form a well. The rotation of the liquid layer, such as the drilling fluid gun set in the solids control system of the American ideal drilling rig, is a fixed drilling fluid gun. Rotary drilling fluid guns are divided into two types: manual adjustment and spin type. Manual adjustment drilling fluid guns can be divided into swing type and rotary type.

The rotary drilling fluid gun needs to be fixed on the top of the drilling fluid tank, the gun rod is deep into the drilling fluid tank, and the nozzle is 200-300mm away from the bottom of the drilling fluid tank. The rotation of the drilling fluid gun forms the rotation of the drilling fluid layer to achieve the purpose of mixing. Manually adjust the rotary drilling fluid gun.

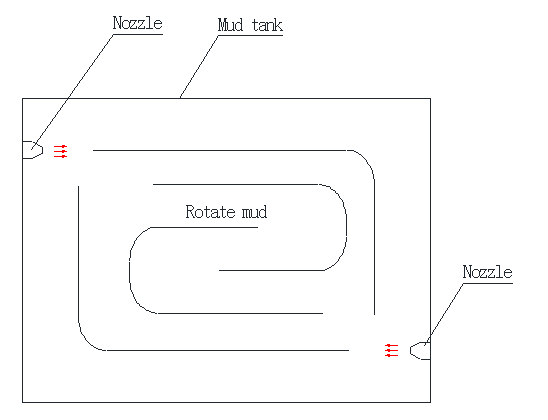

Working principle of fixed drilling fluid gun
