HYQ1200/2.5 mud gas separator

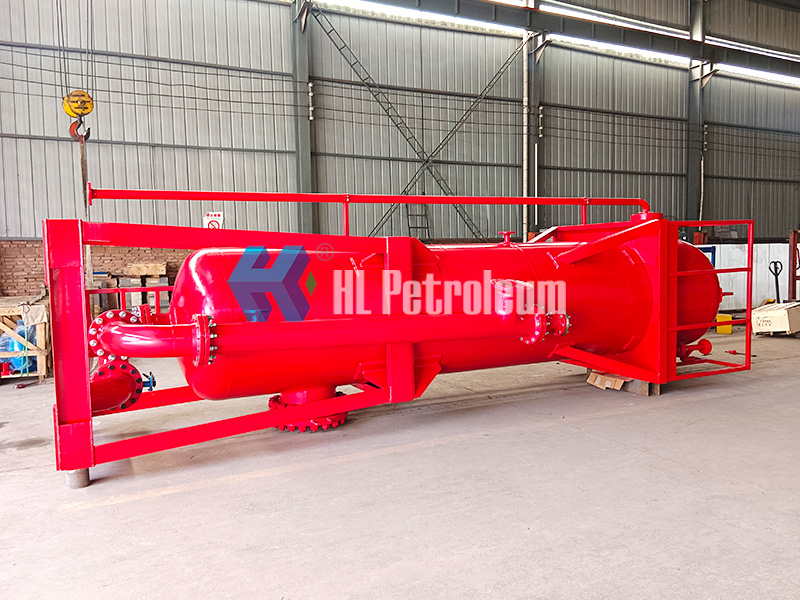

Today, we’d like to introduce this HYQ1200/2.5 mud gas separator behind me, which is also called poor boy . It is mainly consist of base ,feeding pipe , manhole,mud discharge pipe,shell,baffle, impingement plate, safety valve, pressure gauge, gas discharge pipe and ladder.

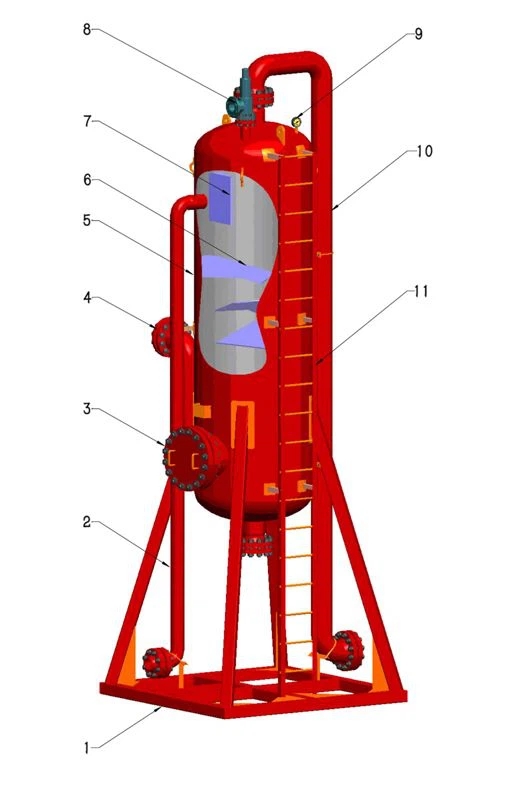

1-base 2-feeding pipe 3-manhole 4-mud discharge pipe 5-shell 6-baffle 7-impingement plate

8-safety valve 9-pressure gauge 10-gas discharge pipe 11-gas discharge pipe

The cylinder diameter of this mud gas separator is 1.2 meters, and the length is 5 meters. The volume of the tank can reach 6 cubic meters. The designed pressure is 392PSI, while the daily liquid processing capacity can reach 8000 cubic meters and daily gas removal can reach 150,000 cubic meters. This equipment can remove air bubbles with diameters greater than 3mm, prevent blowout, well kick, and other major safety accidents.

The working principle of this mud gas separator is actually simple. The gas-invading drilling fluid enters the separator from the liquid inlet and is scattered on a series of internal baffles after colliding with the impact plate.After the collision, the exposed surface area is increased and flows downward, causing turbulence, breaking large bubbles and separating them from the drilling fluid.

Ok, this is all for today. If you want to know more about mud gas separator, welcome to send inquiry to us: sales@hlsolidscontrol.com thank you very much!
