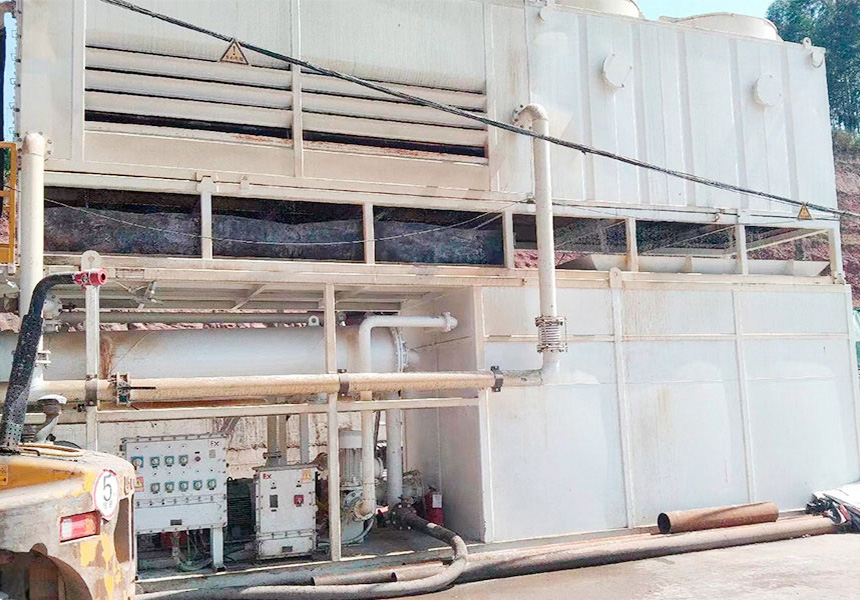

The technical parameters of the drilling fluid cooling system
Time: 2023-07-19 Source: HL Petroleum Author: hlsolidscontrol
The technical parameters of the drilling fluid cooling system are very important to ensure the smooth progress of the drilling operation. The following are the detailed technical parameters of the drilling fluid cooling system:
The inlet water temperature range of the cooling tank of the drilling fluid cooling system is 80-90°C, and the outlet water temperature is 55-60°C, thus achieving a cooling effect with a temperature difference of 20-25°C. The total flow rate of the system is 180m3/h, ensuring sufficient flow supply to meet the needs of drilling operations.
This drilling fluid cooling system uses two electric motors with a power of 4.0kW to ensure that the liquid in the cooling tank can be fully circulated and cooled. In addition, the system is also equipped with a fan with a diameter of 1800mm, with an air volume of 68000m3/h, providing strong wind support for liquid cooling.
The overall dimensions of the drilling fluid cooling system are 6200×2830×3200 (mm), which can be compressed to 6200×2830×2950 (mm) during transportation, which is convenient for transportation and installation.
Xi'an HL Petroleum can design and customize mud cooling devices and drilling fluid cooling system of different specifications according to the specific needs of customers. No matter what specifications of equipment customers need, we can provide corresponding solutions. If you have an inquiry or purchase requirement about the mud cooling system, it is recommended to contact Xi'an HL Petroleum directly, and we will provide more detailed information and professional services.
