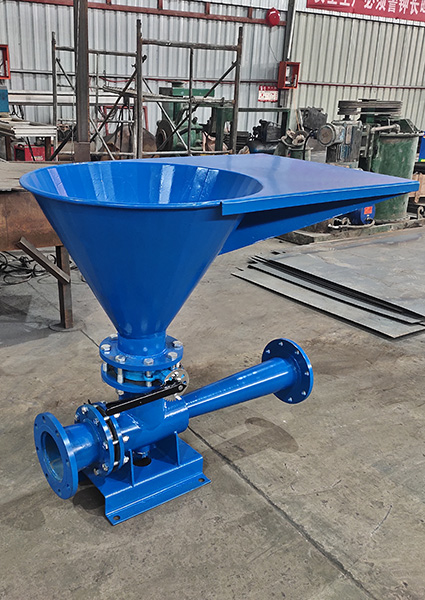

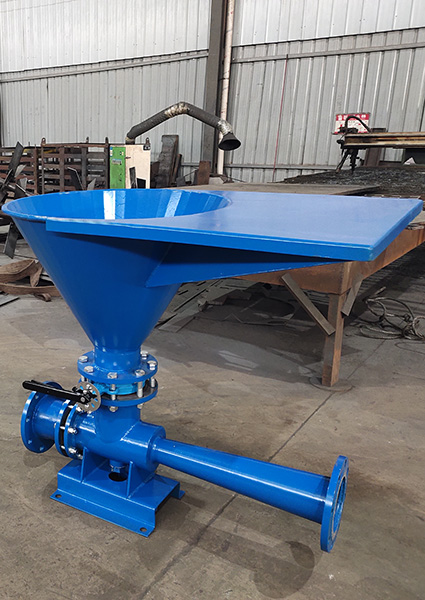

What is a centrifugal pump mud hopper?

A centrifugal pump mud hopper is a device used in drilling and oilfield operations to mix drilling fluids or mud. It is commonly used in the process of adding solid additives, such as bentonite, barite, or polymers, to the drilling mud to enhance its properties.


The mud hopper is typically connected to a centrifugal pump, which provides the necessary pressure and flow to mix the additives with the drilling fluid. The pump draws the drilling fluid from a tank or pit and passes it through the mud hopper. The hopper is equipped with nozzles or jets that create a venturi effect, creating a vacuum to draw in and mix the solid additives.

The solid additives are usually stored in a separate hopper or tank and are gravity-fed into the mud hopper. As the drilling fluid passes through the hopper, the vacuum created by the venturi effect pulls the solid additives into the fluid stream. This mixing process ensures that the additives are thoroughly blended with the drilling mud.

The centrifugal pump mud hopper system allows for efficient and accurate mixing of drilling fluid additives, ensuring consistent mud properties and optimal drilling performance. It is an essential component in drilling operations where precise control over mud composition and properties is necessary for successful wellbore drilling and completion.
