How to use mud hopper?

It is important to know how to use mud hopper.

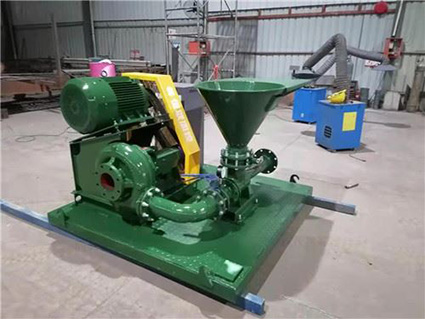

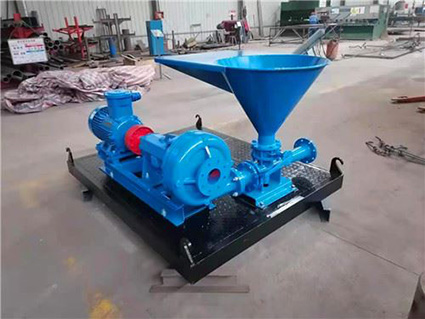

The mud hopper is generally combined with a sand pump to form a jet mixing device, or combined with a shear pump to form a shearing slurry mixing device. The mud hopper can also be used alone.


The jet mud hopper and the cement mud hopper used for cementing are basically the same in structure or principle. The drilling fluid mud hopper is mainly composed of a nozzle, a mixing chamber, a venturi tube, a feeding hopper and a butterfly valve. The venturi tube is a hollow tube that gradually expands according to a certain curved surface. Its main function is to increase the shearing force of the liquid in the tube, so that the material can be better dispersed and the pressure of the mixed liquid, so as to enter the circulation tank.

After the jet hopper is mixed, the pressure loss is very large, so that the drilling fluid can be directly discharged into the drilling fluid tank after being mixed by the jet mud hopper. The funnel is usually installed on the top of the drilling fluid tank (that is, installed at a high position), so that the mixed drilling fluid is directly discharged into the drilling fluid tank without climbing.

The use of the mud hopper is not complicated, either in combination with a sand pump or a shear pump, or used alone. When used alone, the mud hopper is generally installed on the top of the mud tank. Welcome to send inquiry to us: sales@hlsolidscontrol.com if you have purchase request of mud hopper.
