Mud Purification System

Product details

Mud Purification System, also known as Mud Purification Device, is mainly suitable for large-diameter pile foundation and anti-seepage wall projects that adopt mud wall consolidation and circulating drilling technology in modern foundation engineering construction. At present, this has been widely used in many fields such as trenchless mud recovery, shield mud water balance, river mud cleaning and geothermal well mud purification.

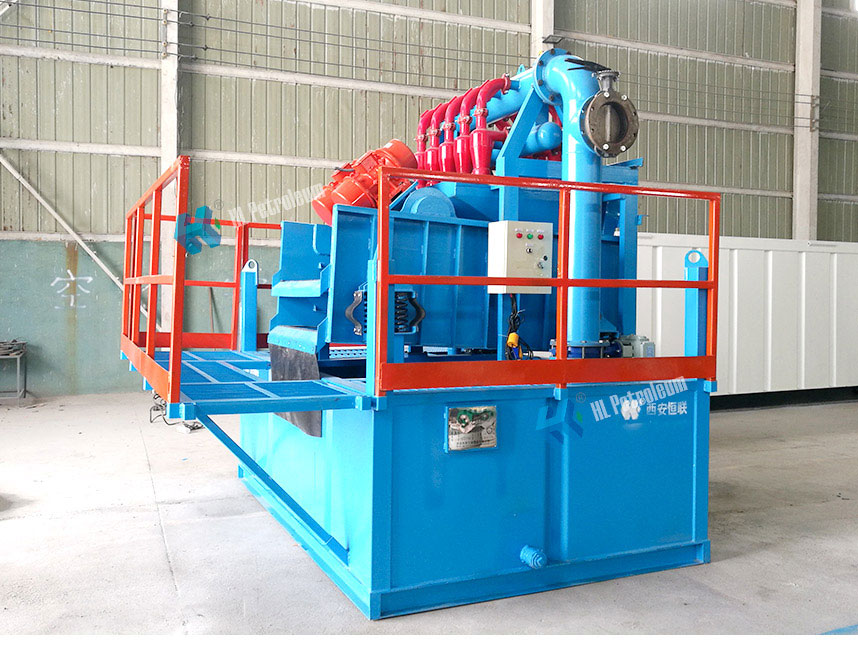

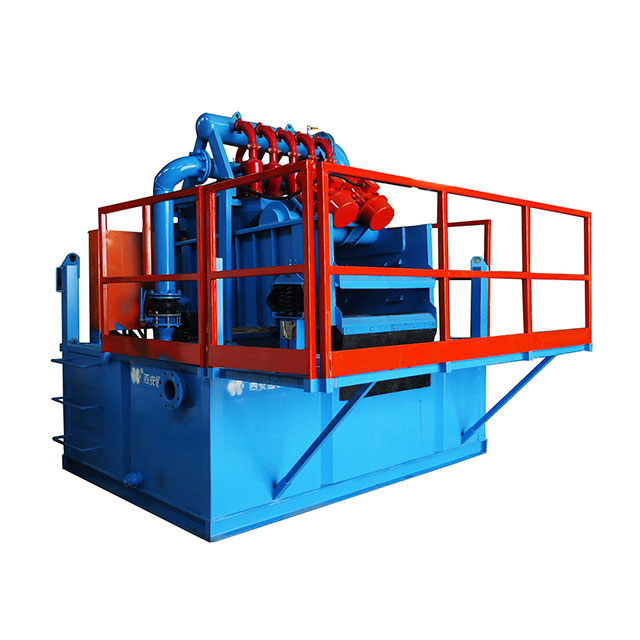

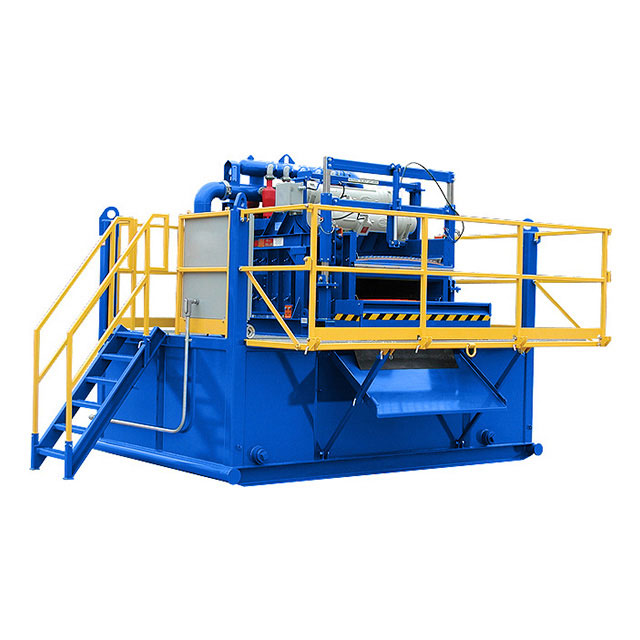

Mud Purification System

Mud Purification System Parameters

Model	Process Capacity (m3/h)	Separated Particles d50(µm)	Slag Screening Capacity (t/h)	Power (kW)	Dimensions (m)	Weight （kg）
HMC20	20	50	≤10	9.7	2.21.262.35	1700
HMC 50	50	50	10~25	17.2	2.21.282.46	2100
HMC100	100	30	25~50	24.2	2.91.92.25	2700
HMC200	200	60	25~80	48	3.542.252.83	4800
HMC250	250	60	25~80	58	3.542.252.83	4900
HMC500	500	60	25~160	237	11.75.95.4	24120

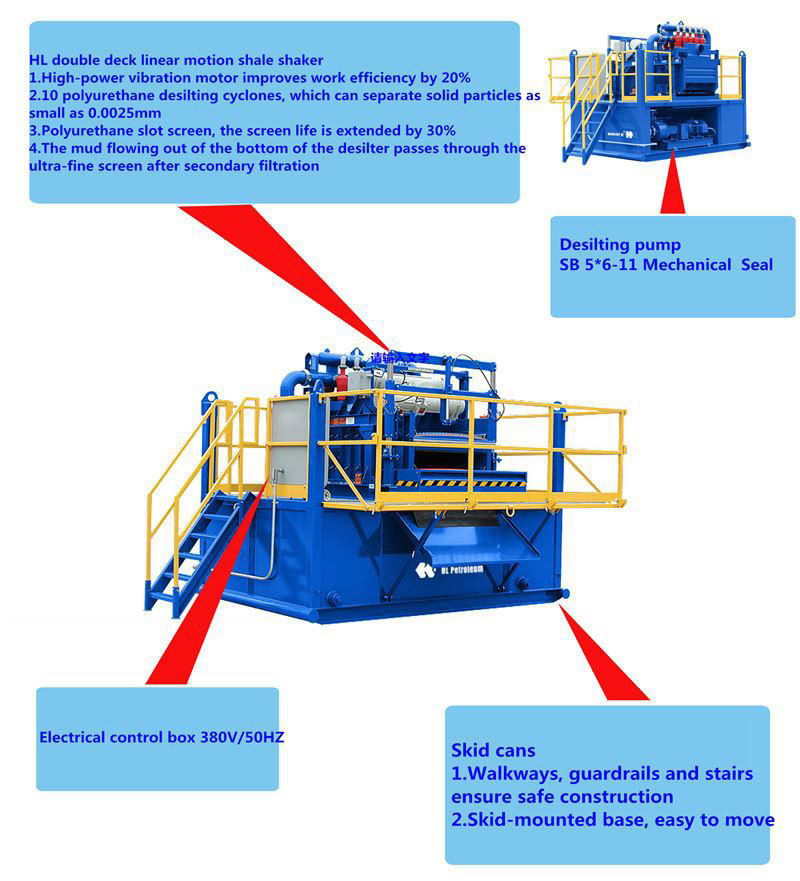

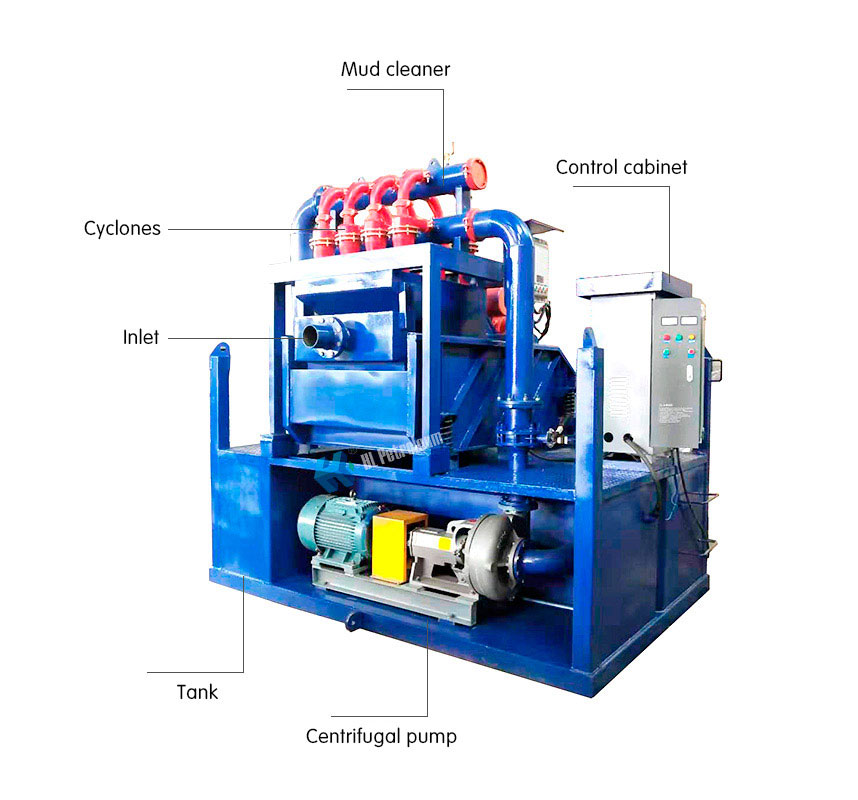

Mud Purification System Details

Mud Purification System Treatment Process

Mud purification system Treatment Process： The waste mud is transported by the slurry pump to the mud shale shaker of the recovery system for coarse and fine two-stage sand removal, and then enters the cyclone for further sand removal and purification. After the mud purification treatment is completed, it enters the circulating irrigation and reuse.

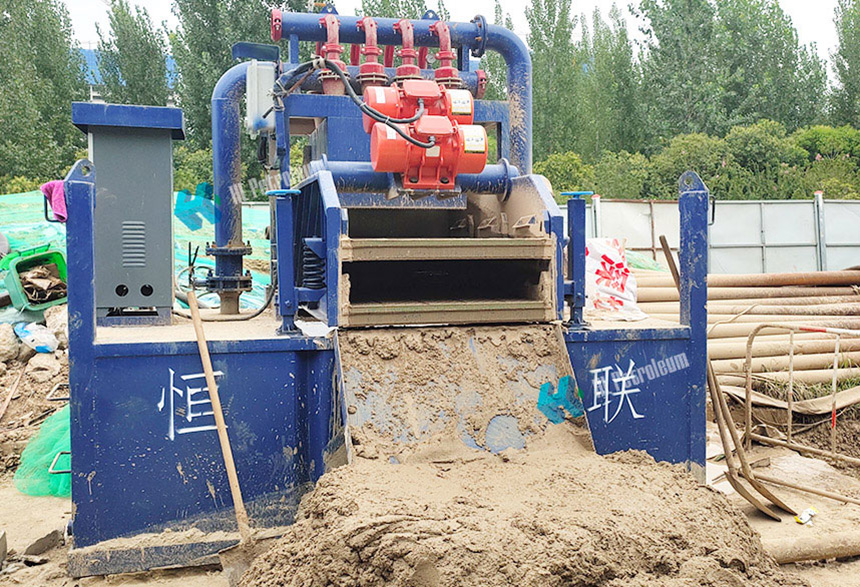

HDD Mud Recovery System Application

Recover and purify the mud containing a large amount of drilling cuttings (sand) flowing out of the wellhead, and provide mud that meets the requirements of crossing construction. Equipped with such a mud purification system is very important to solve the problem of environmental pollution. It not only reduces the total amount of mud consumption in the entire crossing construction, reduces environmental pollution, but also reduces engineering costs and improves economic benefits.

According to different industries and different units, we have developed 6 series of mud purification devices, which can meet the requirements of mud purifiers in various fields such as trenchless horizontal directional drilling, shield mud separation, tunnels, bridges, piling, etc., and greatly reduce mud The usage of the purifier. Reduce construction costs and improve work efficiency.
